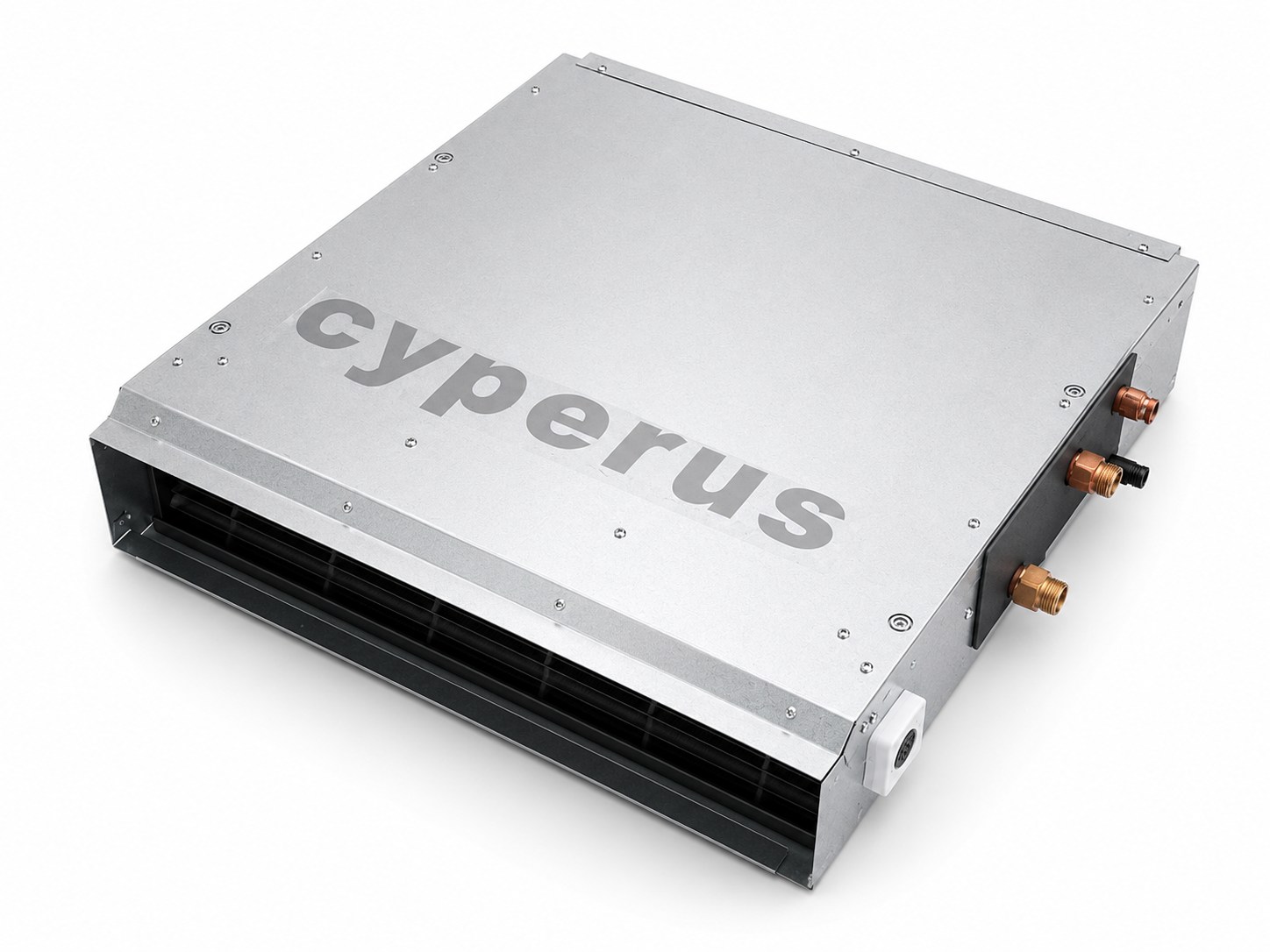

Introduction to Cyperus 400 CFM Slim Ceiling Fan Coil
The Cyperus 400 CFM Slim Ceiling Fan Coil Unit is a modern HVAC solution designed for residential, commercial, and office buildings where high performance, compact design, and space efficiency are important.
With its ultra-slim body design, only 130 mm height, DC motor technology, low noise operation, and smart control capability, this fan coil unit is an ideal choice for modern architectural projects with limited ceiling space.
The Cyperus 400 CFM ceiling fan coil combines efficient cooling and heating performance with a stylish and compact structure, making it suitable for concealed ceiling installation in various building applications.
Key Features of Cyperus 400 CFM Slim Ceiling Fan Coil
| Feature |
Description |
| Product Model |
Cyperus 400 CFM Slim Ceiling Fan Coil |
| Installation Type |
Concealed Ceiling Mounted |
| Design |
Ultra Slim & Modern Design |
| Height |
130 mm |
| Motor Type |
DC Motor |
| Noise Level |
Low Noise Operation |
| Smart Control |
Compatible with Cyperus Personal App |
| Thermostat Control |
Compatible with Cyperus Wall Thermostat |
| Filter |
Washable Filter |
| Body Material |
Strong Galvanized Steel Body |
| Application |
Residential, Commercial and Office Buildings |
Technical Specifications of Cyperus 400 CFM Fan Coil Unit
| Technical Parameter |
Specification |
| Model |
Cyperus 400 CFM |
| Air Volume |
412 m³/h |
| Super High Air Volume |
495 m³/h |
| Cooling Capacity |
4.3 kW |
| Heating Capacity |
4.5 kW |
| Water Flow Rate |
12 L/min |
| Blower Fan |
2 Units |
| Engine Power |
0.4 kW |
| Motor Type |
DC 12V |
| Sound Level (High) |
44 dB |
| Sound Level (Medium) |
40 dB |
| Sound Level (Low) |
37 dB |
| Pipe Diameter |
3/4 Inch |
| Overall Dimension |
1012 × 636 × 130 mm |
| Screw Spacing |
870 × 2 mm |
Cyperus Slim Fan Coil Dimensions Table
| Fan Coil Capacity |
Length (MM) |
Width (MM) |
Height (MM) |
| 200 CFM |
443 |
636 |
130 |
| 300 CFM |
610 |
636 |
130 |
| 400 CFM |
946 |
636 |
130 |
| 600 CFM |
1228 |
636 |
130 |
Advantages of Cyperus 400 CFM Ultra Slim Fan Coil
Ultra Slim Design for Limited Ceiling Spaces
One of the main advantages of the Cyperus 400 CFM fan coil is its compact structure. With only 130 mm height, this unit can be installed in areas where ceiling space is limited.
This low-profile design makes it suitable for modern buildings with false ceilings and minimal architectural space.
Low Noise Operation with DC Motor Technology
The advanced DC motor system provides efficient operation with reduced energy consumption and lower operating noise.
With sound levels between 37 and 44 dB, this fan coil creates a comfortable environment for offices, bedrooms, and modern living spaces.
Smart Temperature Control
The Cyperus 400 CFM model supports smart control features, allowing users to connect the unit to:
This feature provides easier temperature management and improved user comfort.
Durable Galvanized Steel Body
The strong galvanized steel structure improves durability and provides reliable performance during long-term operation.
The robust body design makes the unit suitable for different installation conditions.
Easy Maintenance with Washable Filter
The washable filter design allows easier cleaning and maintenance, helping maintain airflow quality and improve the operating efficiency of the system.
Applications of Cyperus 400 CFM Ceiling Fan Coil
| Building Type |
Application |
| Modern Apartments |
Efficient cooling and heating solution |
| Office Buildings |
Quiet operation for comfortable workplaces |
| Commercial Buildings |
Space-saving concealed installation |
| Luxury Projects |
Compatible with modern interior designs |
| Residential Projects |
Smart and efficient climate control |
Why Choose Cyperus 400 CFM Slim Ceiling Fan Coil?
Modern buildings require HVAC systems that provide more than just cooling and heating. Space efficiency, energy consumption, noise level, and smart control are important factors in choosing the right equipment.
The Cyperus 400 CFM Slim Ceiling Fan Coil offers a combination of:
-
Compact dimensions
-
High efficiency
-
Modern appearance
-
Smart connectivity
-
Low noise operation
-
Reliable construction
This makes it a suitable solution for architects, engineers, contractors, and building owners looking for advanced HVAC equipment.
Important Factors Before Purchasing a 400 CFM Fan Coil
Before selecting a fan coil unit, several factors should be considered:
Choosing the correct capacity helps improve system efficiency and reduces unnecessary energy costs.
Purchase Cyperus 400 CFM Slim Ceiling Fan Coil
If you are looking for a modern, compact, low-noise, and efficient ceiling fan coil unit, the Cyperus 400 CFM model can be a suitable option for residential and commercial projects.
For technical consultation, capacity selection, and purchasing information, contact the Cyperus sales team.
Frequently Asked Questions (FAQ)
What is the height of Cyperus 400 CFM Slim Fan Coil?
The unit has an ultra-slim height of 130 mm, making it suitable for limited ceiling spaces.
What is the airflow capacity of the 400 CFM model?
The standard airflow is 412 m³/h, with a super high airflow of 495 m³/h.
Does Cyperus 400 CFM use a DC motor?
Yes, this model is equipped with a DC motor for efficient and quiet operation.
Can this fan coil be controlled remotely?
Yes, it supports connection with the Cyperus personal app and wall thermostat.
What are the dimensions of Cyperus 400 CFM Fan Coil?
The overall dimensions are 1012 × 636 × 130 mm.
